aRacer RC Super X PRO ECU – Yamaha Zuma 125 R / BWs R 125 2015–2017

Race-level engine management for the Zuma 125 R scooter — open maps plus Race Panel, iMode 5 and Race Module support for a serious scooter-race build.

The aRacer RC Super X PRO is aRacer’s race-level ECU. It does everything the Mini does — full replacement of the factory ECU, open fuel and ignition maps, Wi-Fi tuning from the X-Tune app or SpeedTuningX on PC, Quick Burn calibrations, AutoTune with a wideband — and adds the hardware and feature set a race bike needs: a faster multi-core processor, finer ignition resolution, more onboard logging memory, an IP67 connection and support for aRacer’s race accessories.

That means the QSR V2 quick shifter, the Race Panel 2 and iMode 5 touchscreen displays, the 3-Button Race Switch and VSS speed sensors for Race Module functions such as launch control, pit limiter and on-the-fly map switching. Mini X / Mini XX ECUs cannot run those accessories.

What it does

• Full replacement of the factory ECU; plug-in installation on the stock harness
• Race-level hardware: multi-core MCU, 0.25° ignition resolution, expanded Fly Recorder logging, IP67 connection
• Open fuel and ignition maps with rev-limit, start/idle and backfire control
• Wi-Fi tuning from the aRacer X-Tune app (iOS / Android) or SpeedTuningX on PC
• Quick Burn base calibrations and free bolt-on calibrations from the aRacer database
• AutoTune and wideband closed-loop with an AF2 / AF3 module
• Supports QSR V2 quick shifter, Race Panel 2, iMode 5, 3-Button Race Switch and VSS (functions vary by application)

Fitment

Fits the 2015–2017 Yamaha Zuma 125 R / BWs R 125. Confirm model year and market version before ordering. The ECU connector and calibration are specific to the model and year, so send us your year and VIN if you are unsure.

Setup and tuning

Plug the ECU into the factory harness, connect to it over Wi-Fi with the free aRacer X-Tune app and run Quick Burn to load the base calibration for your bike and mods. For full map access on a PC you need SpeedTuningX and the PRO-LINK USB adapter (sold separately). Heavily modified engines should be finished on a dyno by a tuner; aRacer’s U.S. team can also remote-tune from logs.

Works with

• aRacer QSR V2 Quick Shifter
• aRacer Race Panel 2
• aRacer iMode 5 Controller
• aRacer AF3 Wideband AFR Module
• aRacer PRO-LINK USB Communication Adapter
• aRacer 3-Button Race Switch
• aRacer R Button
• aRacer DG2 Multi-Function Display Gauge

Specifications

• Part number: PA-B301080DB
• Platform: aRacer RC Super X PRO
• Application: Yamaha Zuma 125 R / BWs R 125 2015–2017
• Type: Full-replacement programmable ECU (plug-in, not piggyback)
• Connectivity: Built-in Wi-Fi to the aRacer X-Tune app; PC via PRO-LINK
• In the box: ECU with activation details for the X-Tune app (keep them with the bike)

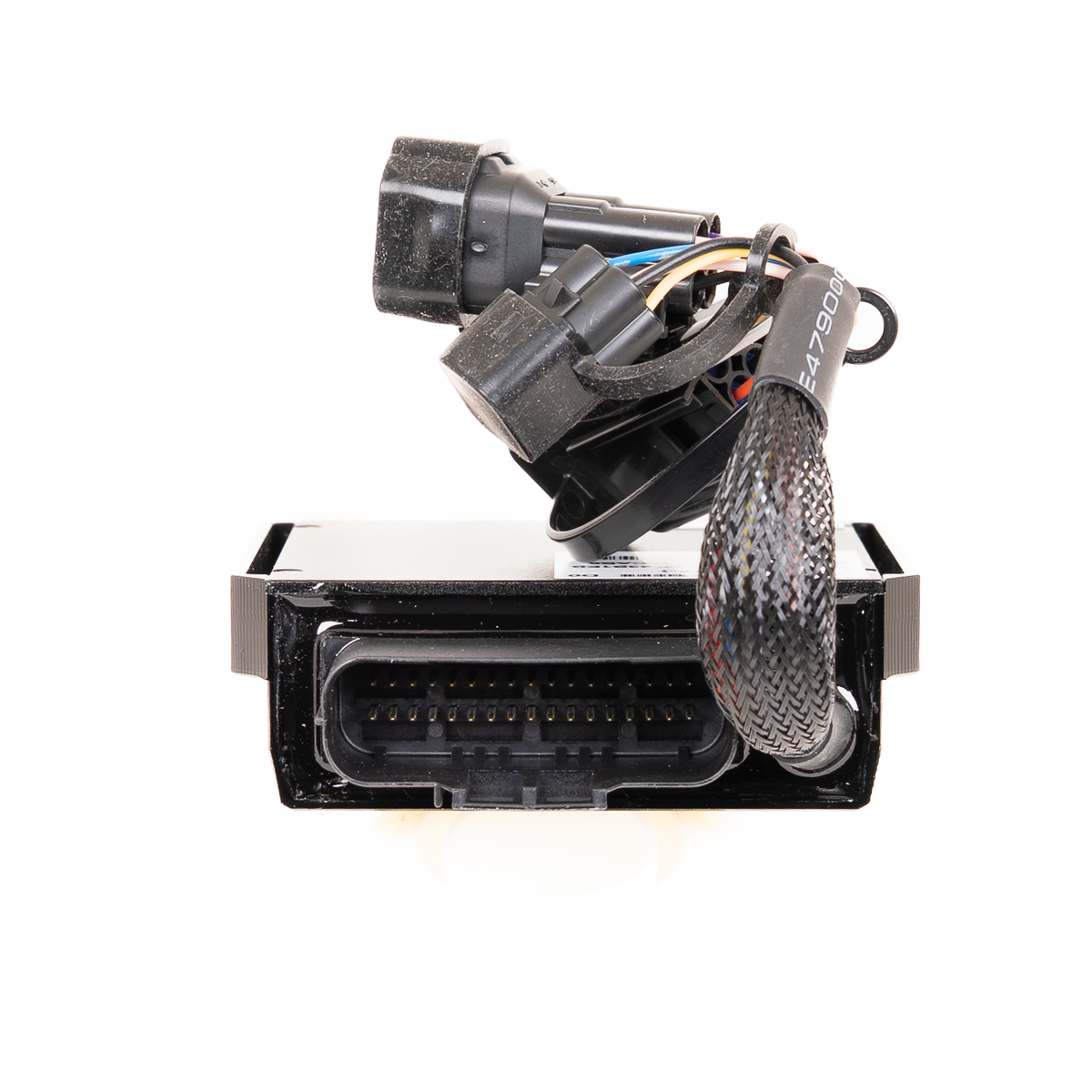

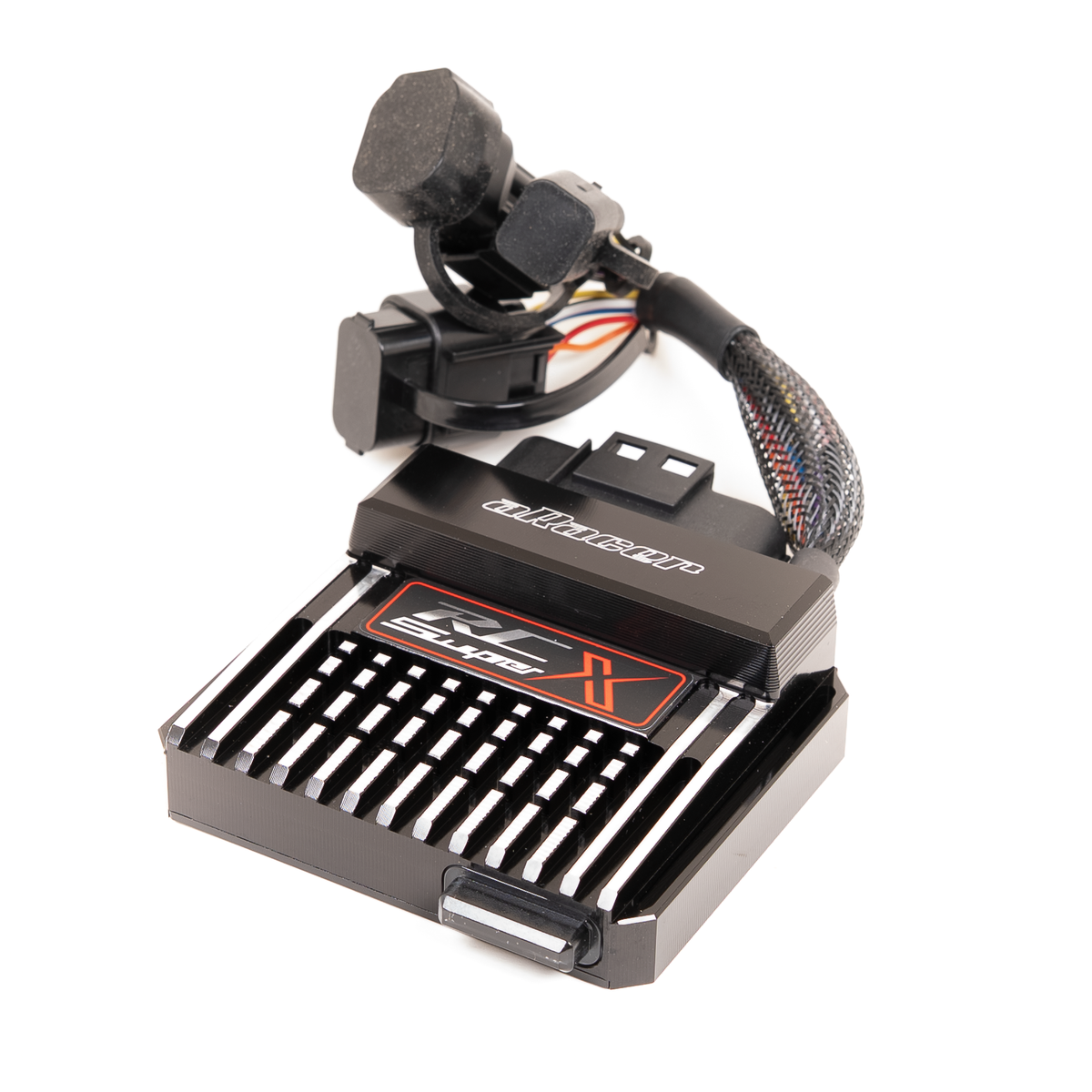

Product images are aRacer’s renders and may show the same ECU housing as a related model.

Closed-course competition use only. aRacer ECUs and race electronics are sold for closed-course competition, off-road, dyno and development use. They are not CARB-approved or EPA-certified for pollution-controlled vehicles on public roads. You are responsible for complying with the laws that apply to you.

Dealer support

Mala Racing is an authorized aRacer SpeedTek dealer. Orders ship from California, and U.S.-based technical support, calibration help and the aRacer calibration database are available through aRacer ECU R&D of America. Not sure about fitment or which accessories you need? Email malaracingllc@gmail.com with your bike, year and mods before you order.
